2252 Series
0.078" x 0.078" Dual Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2522 , 2523 Series

Electrical:
Current Rating: 2 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25
oC to +105oC



RoHs
Ordering Part Number
2252 - 2 X [][] [] -[]
Series Number Number of Rows Number of Positions Per Row Contact Plating Housing Height


[ 1 thru 40 pins ] G: Gold Flash
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold
Blank: 4.6mm (Standard)
4.3: 4.3mm
4.0: 4.0mm
XXX: Specify height if different.

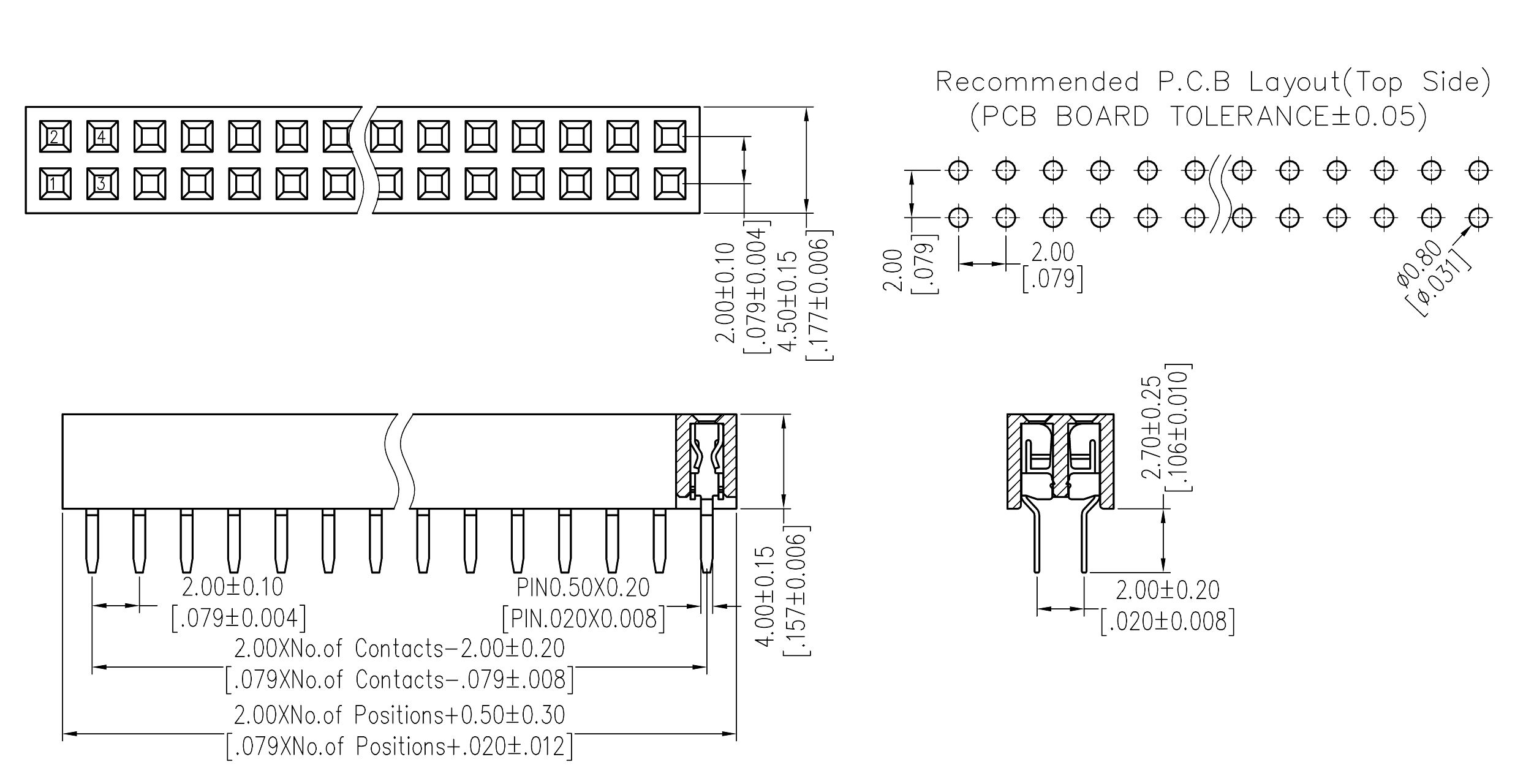

4.6mm


4.3mm


4.0mm
