2522 Series
0.078"/2.0mm Center Un-shrouded Header Strip; Dual Row

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Under plating
Insulator: PA9T High Temperature HB Grade 257C
Insulator Color: Black
Mini Jumper: 2546-07 Series

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Meg ohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +140oC





Ordering Part Number

2522 -

2 x [][]

[]

[]

- []

[][][][]

Series Number

Number of Rows
Positions Per Row

Contact Plating

Mounting Option

Package

Size

2522
Through Hole Header

[ 2 thru 50 pins ]

G: Gold Flash
F: 10u" Gold (MOQ)
E: 15u" Gold (MOQ)
D: 30u" Gold (MOQ)

Blanket: Type 1 w/o post

P: Type 2 w Post



Blanket: Bag


 2522S
 Surface Mount Header

B: Tube
T: Tape Reel
TC: Tape Reel + Cap
       (For auto insertion M/C)
* Available Mold: 2X4, 2X6, 2X7, 2X13, 2X17,2X22

5: 5.80
6: 6.80
7: 7.80

 2522S-2-
 Surface Mount Stack Header

 [ 3 thru 25 pins ]

 G: Gold Flash
 GT: Gold Flash Selected

B: Tube
TC: Tape ReelReel + Cap
      (For auto insertion M/C)

Contact us for details.

 2522-2-
 Through Hole Stack Header

 [ 2 thru 40 pins ]

 G: Gold Flash
 GT: Gold Flash Selected

 Blank: Type 1
 A: Type 2

Blank: Bulk
T: Tube

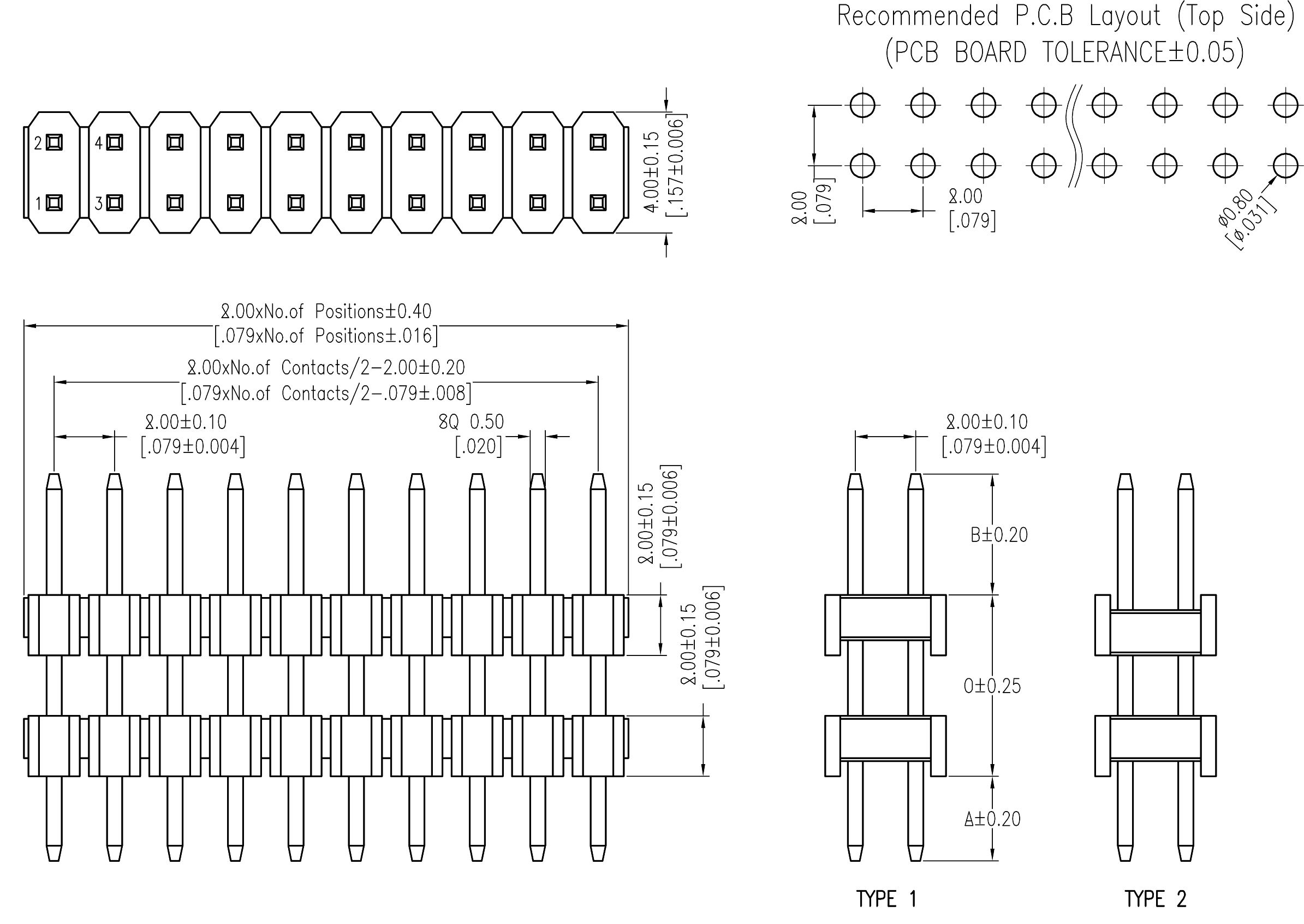

Length: A+B+C




2522S Series

2522S-2 Stack Series




2522-2 Stack Series




| Main Menu | Online catalog | Local Rep | Distribution |
| News | Company | Request Form | E-Mail |
