3027 Series - Metal Wire Strain Relief or Plastic Strain Relief
D-Sub IDC Type; for flat ribbon cable

Materials:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: Selected Gold
Contact Underplating: Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue (Standard color)
????? Black Color available with suffix - BK
Alternative: 3047, 3037, 3007 Series.
Recommended Cable: 1.27mm ctr. Ribbon Cable 26 or 28 AWG; FC Series
Electrical:
Contact Current Rating: 1.4 Amp (26AWG); 1 Amp (28 AWG)
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC
RoHs
Ordering Part Number
3027 - []
 [] [] [][]
 - [][]
Series Number Type
 No of Positions Contact Plating OptionsStrain Relief
 Color

0: Plug (M)
1: Recept (F)
 1: 9 Pos.
2: 15 Pos.
5: 25 Pos.
6: 37 Pos.		 Blank: Select Gold
F: 10u" Selected Gold
E: 15u" Selected Gold
D: 30u" Selected Gold		 A: Mounting Hole 3mm
B: 4-40 Thread Insert
Blank: No Strain Relief (2)
P: Plastic Strain Relief (P)
M: Metal Strain Relief
 Blank: Blue
BK: Black
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell
Mounting Hole 4-40 Thread Insert
E 9 Plug (M) 3027-01A 3027-01B
Recept (F) 3027-11A 3027-11B
A 15 Plug (M) 3027-02A 3027-02B
Recept (F) 3027-12A 3027-12B
B 25 Plug (M) 3027-05A 3027-05B
Recept (F) 3027-15A 3027-15B
C 37 Plug (M) 3027-06A 3027-06B
Recept (F) 3027-16A 3027-16B
* Black Color available with suffix - BK
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

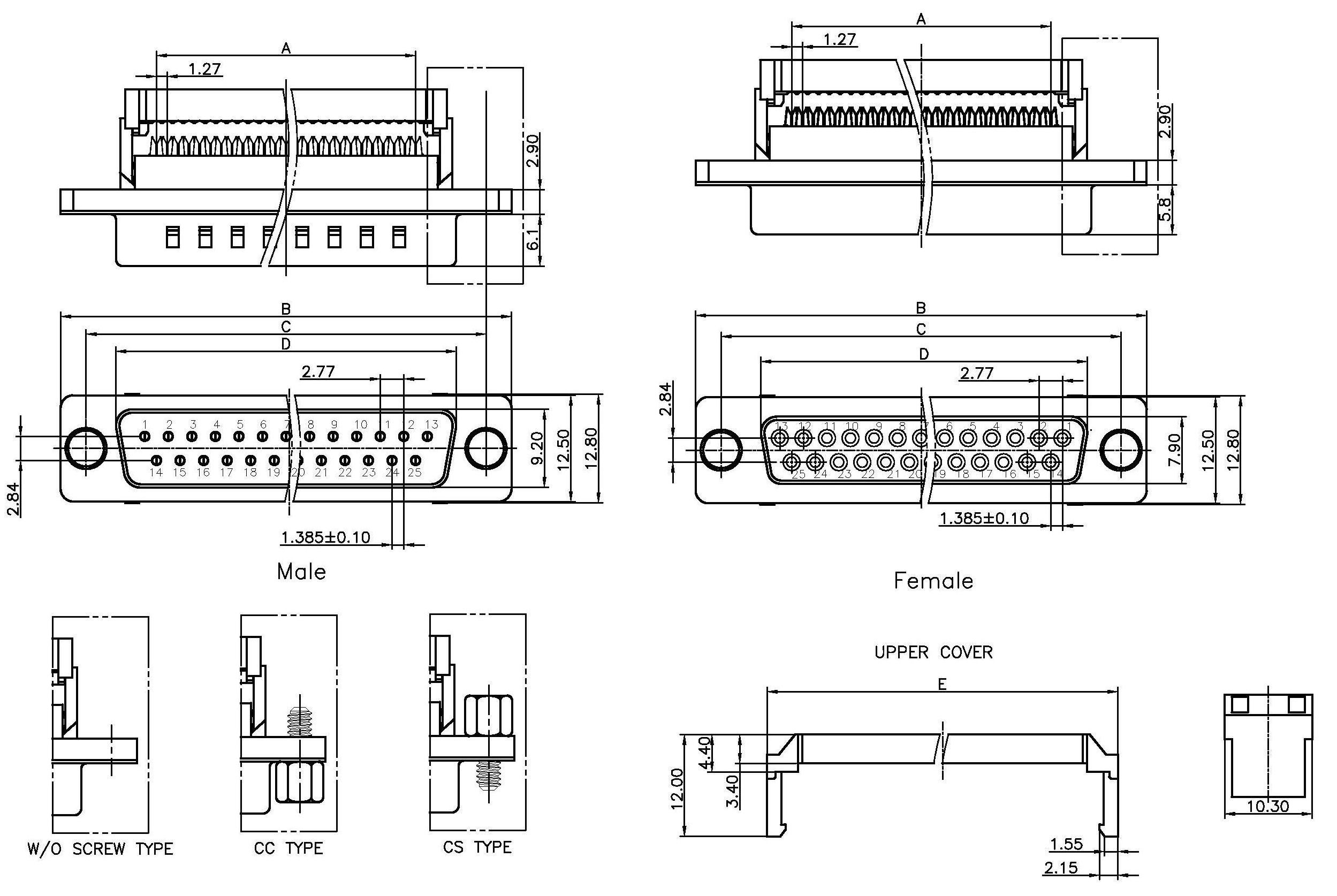

Mechanical Specification and Mounting Option
3027
3027SR

Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 9 Plug (M) 10.16 30.80 24.99 17.90 19.00
Recept (F) 16.33
A 15 Plug (M) 17.78 39.14 33.32 26.50 27.34
Recept (F) 24.66
B 25 Plug (M) 30.48 53.04 47.04 40.00 41.24
Recept (F) 38.38
C 37 Plug (M) 45.72 69.32 63.50 56.50 57.52
Recept (F) 54.84
