W005G THRU W10G
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
	VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes

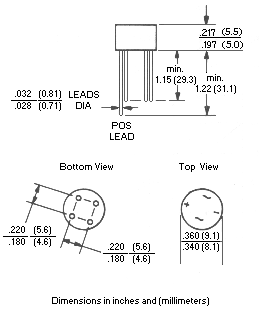

Features: UL recognized file# E173410 Ideal for printed circuit board Mounting Position: Any Leads: Silver plated copper Plastic material UL recognized UL 94V-O

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified. 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Ho Chien Bridge Rectifier Product	PART NUMBER
W0 SERIES	Symbol	W005G	W01G	W02G	W04G	W06G	W08G	W10G	Units
Max. Recurrent Peak Reverse Voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage	VDC	50	100	200	400	600	800	1000	Volts
Max. Avg. Forward Output Current T_A = 25^oC	I_(AV)	1.5							Amps
Peak Fwd Surge Cur, Single half sine-wave Superimposed on rated load (JEDEC Method)	I_FSM	40.0							Amps
Rating for fusing (t<8.3ms)	I²t	6.6							A²S
Maximum DC Forward Drop per element at 1 A DC	V_F	1.0							Volts
Max. DC Rev Current at Rated T_A = 25^oC DC Block Volt per element T_A = 100^oC	I_R	10.0 1.0							uA mA
Operating Temperature Range	T_J	-55 to +125							^oC
Storage Temperature Range	T_STG	-55 to +150							^oC
Ratings and Characteristics Curves are available. Contact us for a copy by Fax or E-Mail.
