KBU6005G THRU KBU610G
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
	VOLTAGE RANGE 50 to 1000 Volts CURRENT 6.0 Amperes

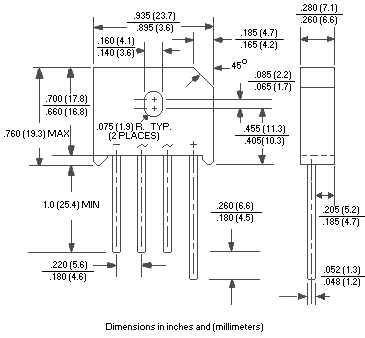

Features: UL recognized file# E173410 Ideal for printed circuit board Surge overload rating - 200 Amp Peak Mounting Position: Any Leads: Silver plated copper Plastic material UL recognized UL 94V-O Molded plastic technique Mounting Torque: 5 In. Ib. max

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified. 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Ho Chien Bridge Rectifier Product	PART NUMBER
KBU6 SERIES	Symbol	KBU 601G	KBU 602G	KBU 603G	KBU 604G	KBU 605G	KBU 606G	KBU 607G	Units
Max. Recurrent Peak Reverse Voltage	VRRM	50	100	200	400	600	800	1000	Volts
Maximum RMS Voltage	VRMS	35	70	140	280	420	560	700	Volts
Maximum DC Blocking Voltage	VDC	50	100	200	400	600	800	1000	Volts
Max. Avg. Forward Output Current T_A = 65^oC	I_(AV)	6.0							Amps
Peak Fwd Surge Cur, Single half sine-wave Superimposed on rated load (JEDEC Method)	I_FSM	200.0							Amps
Typical Thermal Resistance from Junctioin to Ambient (Note 1)	ROJA	4.7							^oC/W
Maximum DC Forward Drop per element at 3A DC	V_F	1.0							Volts
Max. DC Rev Current at Rated T_A = 25^oC DC Block Volt per element T_A = 100^oC	I_R	10.0 1.0							uA mA
Operating Temperature Range	T_J	-55 to +125							^oC
Storage Temperature Range	T_STG	-55 to +150							^oC
Notes: 1. United mounted on 3.0"x3.0"x.11" thick (7.5x7.5x0.3 cm) Al. plate. Ratings and Characteristics Curves are available. Contact us for a copy by Fax or E-Mail.
