WIRE TO P.C.B. TYPE TERMINAL BLOCK
ETB 50 SERIES 9.5mm 0.374" (MOUNT TYPE/BARRIER TYPE)
     FEATURES
  • Can be supplied in any number of positions
  • Special wire protector design to ensure reliable wire clamping
  • UL 94V-0 grade fire retardant engineering plastic used for the housing
  • E133988(R)  LR100420
  • Be capable of clamping a wide range of wire diameters
  • Wide choice of pitch & terminal

    SPECIFICATIONS

  • Pitch: 9.5mm(0.374inch)
  • Wire range: 14AWG to 22AWG
  • Rated: 15Amp, 300VAC
  • Housing material:
    Thermoplastic (UL 94V-0) Black
  • Terminals: Tin plated over Brass
  • Screws: Nickel plated over Steel
  • Dielectric strength: 2000VAC (Min.)
  • Insulation resistance: 1000M, 500VDC


RoHs


  ETB 50 01 1 - 02 XX X
   |   |  | |   |  | |
   |   |  | |   |  | +--- Z:Sn Plated (lead free)
   |   |  | |   |  +--- Special number
   |   |  | |   +--- Number of pole
   |   |  | +--- Housing type
   |   |  |      1:Mount type
   |   |  |      2:Barrier type
   |   |  +--- Terminal type
   |   +--- Series
   +--- Model

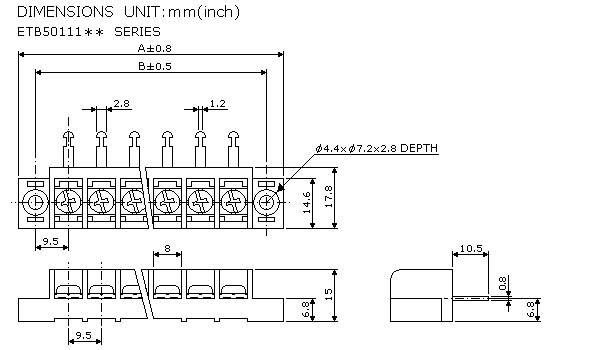

DRAWING (MOUNT TYPE)













mm to inch

mm

0.8

1.2

1.6

2.8

3

3.2

4.4

5

6.8

7.2

8

inch

0.031

0.047

0.063

0.110

0.118

0.126

0.173

0.197

0.268

0.283

0.315

mm

9.5

10.5

13

14.6

15

17.8

18

18.2







inch

0.374

0.413

0.512

0.575

0.591

0.701

0.709

0.717







DIMENSIONS OF MOUNT TYPE

**NUMBER OF POLE 02~30.

POLE

2

3

4

5

6

7

8

9

10

11

12

A0.8

38
(1.496)

47.5
(1.870)

57
(2.244)

66.5
(2.618)

76
(2.992)

85.5
(3.366)

95
(3.740)

104.5
(4.114)

114
(4.488)

123.5
(4.862)

133
(5.236)

B0.5

28.5
(1.122)

38
(1.496)

47.5
(1.870)

57
(2.244)

66.5
(2.618)

76
(2.992)

85.5
(3.366)

95
(3.740)

104.5
(4.114)

114
(4.488)

123.5
(4.862)

POLE

13

14

15

16

17

18

19

20

21

22

23

A0.8

142.5
(5.610)

152
(5.984)

161.5
(6.358)

171
(6.732)

180.5
(7.106)

190
(7.480)

199.5
(7.854)

209
(8.228)

218.5
(8.602)

228
(8.976)

237.5
(9.350)

B0.5

133
(5.236)

142.5
(5.610)

152
(5.984)

161.5
(6.358)

171
(6.732)

180.5
(7.106)

190
(7.480)

199.5
(7.854)

209
(8.228)

218.5
(8.602)

228
(8.976)

POLE

24

25

26

27

28

29

30









A0.8

247
(9.724)

256.5
(10.098)

266
(10.472)

275.5
(10.846)

285
(11.220)

294.5
(11.594)

304
(11.969)









B0.5

237.5
(9.350)

247
(9.724)

256.5
(10.098)

266
(10.472)

275.5
(10.846)

285
(11.220)

294.5
(11.594)









DIMENSIONS OF BARRIER TYPE

**NUMBER OF POLE 02~32.

POLE

2

3

4

5

6

7

8

9

10

11

12

A0.8

20.5
(0.807)

30
(1.181)

39.5
(1.555)

49
(1.929)

58.5
(2.303)

68
(2.677)

77.5
(3.051)

87
(3.425)

96.5
(3.799)

106
(4.173)

115.5
(4.547)

B0.5

9.5
(0.374)

19
(0.748)

28.5
(1.122)

38
(1.496)

47.5
(1.870)

57
(2.244)

66.5
(2.618)

76
(2.992)

85.5
(3.366)

95
(3.740)

104.5
(4.114)

POLE

13

14

15

16

17

18

19

20

21

22

23

A0.8

125
(4.921)

134.5
(5.295)

144
(5.669)

153.5
(6.043)

163
(6.417)

172.5
(6.791)

182
(7.165)

191.5
(7.539)

201
(7.913)

210.5
(8.287)

220
(8.661)

B0.5

114
(4.488)

123.5
(4.862)

133
(5.236)

142.5
(5.610)

152
(5.984)

161.5
(6.358)

171
(6.732)

180.5
(7.106)

190
(7.480)

199.5
(7.854)

209
(8.228)

POLE

24

25

26

27

28

29

30

31

32





A0.8

229.5
(9.035)

239
(9.409)

248.5
(9.783)

258
(10.157)

267.5
(10.531)

277
(10.906)

286.5
(11.280)

296
(11.654)

305.5
(12.028)





B0.5

218.5
(8.602)

228
(8.976)

237.5
(9.350)

247
(9.724)

256.5
(10.098)

266
(10.472)

275.5
(10.846)

285
(11.220)

294.5
(11.594)
