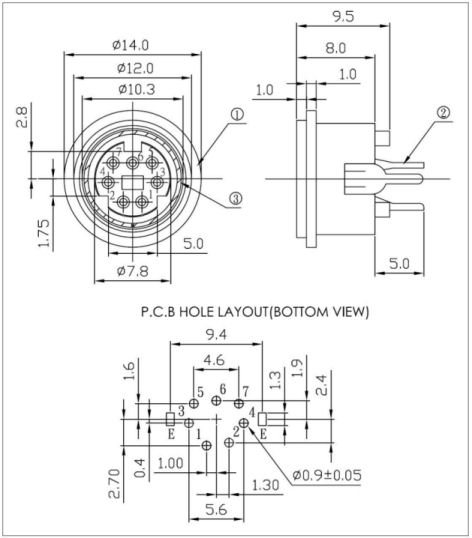

CJ111A Series
Straight Mini Din

Material:
Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

Ordering Part Number:
