| 3318 Series (Machined pin contact) High Density D-Sub PCB High profile Vertical Type Material: Shell: Steel w/ Tin Plated Contact: Phosphor Bronze Contact Plating: 0.000127mm [0.000005"] Gold Contact Underplating: 0.00254mm [0.000100"] min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic : UL94V-O UL File# E107536, material D202G30@ Color: White (optional Black and Blue) Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105o
|
|
| Ordering Part Number | |||||||
| Shell Size |
No. of Position |
Plug (M) / Recept (F) |
Tin Shell | ||||
| Mounting Hole | Clinch Nut - Rear | Fixed Jackscrew - Front | Standoff Boardlock |
Standoff Boardlock w Jackscrew Assembly |
|||
| E | 15 | Plug (M) | 3318-15 | 3318-15-2N | 3318-15-2NA | 3318-15-2ND | 3318-15-2NDJ |
| A | 26 | Plug (M) | 3318-26 | 3318-26-2N | 3318-26-2NA | 3318-26-2ND | 3318-26-2NDJ |
| B | 44 | Plug (M) | 3318-44 | 3318-44 -2N | 3318-44 -2NA | 3318-44-2ND | 3318-44 -2NDJ |
| C | 62 | Plug (M) | 3318-62 | 3318-62-2N | 3318-62-2NA | 3318-62-2ND | 3318-62-2NDJ |
| D | 78 | Plug (M) | 3318-78 | 3318-78-2N | 3318-78-2NA | 3318-78-2ND | 3318-78-2NDJ |
| * Also Available (Contact Ho Chien for more information): - Mounting options in Zinc Shell. - Blue or Black insulation. - Contact gold plating upgrade. ** - Custom length of contact leads. ** - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply |
|||||||

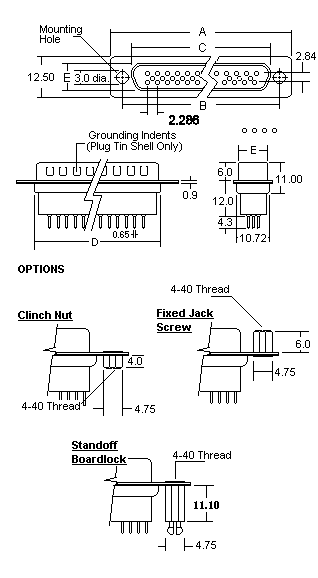

Mechanical Specification and
Mounting Option:
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
