2564 Series
0.200" Ctr Un-shrouded Header Strip; Single Row

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Under plating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +140oC

Ordering Part Number

2564-

1 x

-[][]

[]

Series Number

Number of Rows

Number of Positions

Contact Plating





[ 1 thru 20 pins ]

T: 150u" Tin
G: Gold Flash
F: 10u" Gold (MOQ)
E: 15u" Gold (MOQ)
D: 30u" Gold (MOQ)

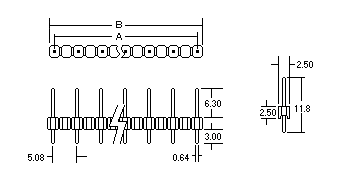

Dimensions (mm)

A

[ 5.08 x No. of Pos. ] - 5.08

B

[ 5.08 x No. of Pos. ] - 2.54
