2558M Series - 0.100" Machine Screwed IC Socket

Material:
Contact: Copper Machine Formed
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +105oC


RoHs
Ordering Part Number
Header 2.54mm Pitch
2558M - 1X[][]
2X[][]

Series Number Number of Positions

2 ~ 40
Header 7.62mm (0.3") Pitch
2558M - 3 -[][]
 -[]
Series Number Number of Positions
 Modification

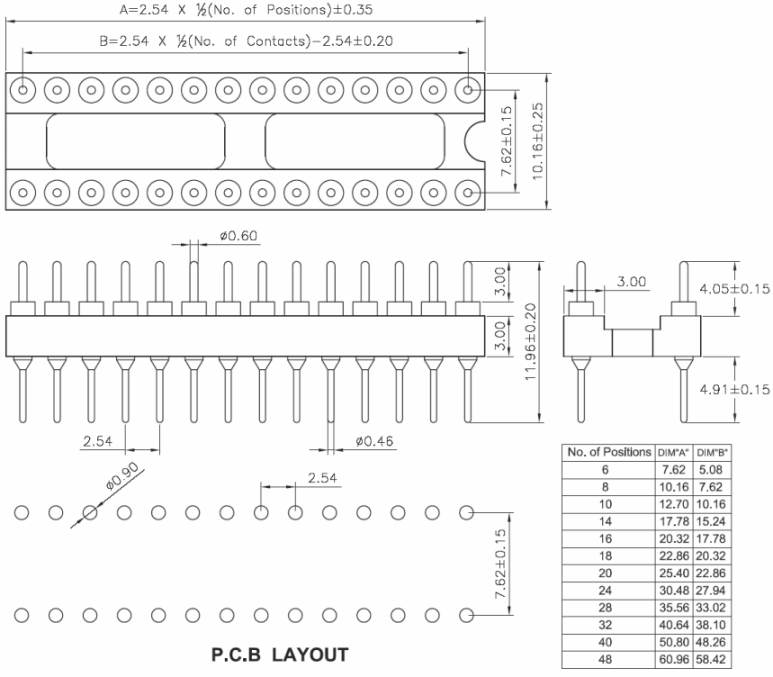

  6, 8, 10, 14, 16, 18, 20, 24, 28, 32, 40, 48 Blank: (See Drawing Below)
1: (See Drawing Below)





2558M-3-XX



2558M-3-XX-1
