2552 Series
0.100"x 0.100" Dual Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Under plating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O, N6 High Temperature for SMT
Insulator Color: Black
Mating Connectors: 2542 , 2543 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +105oC


RoHs

Ordering Part Number

Standard Pitch Peg 2.54 x 2.54mm

255[] -

2 X

[][]

[]

- []

[]

[]

Series Number

2 Rows

Number of Positions
Per Row

Contact Plating

Bump/Post

Housing High

Pitch

2552 Straight



[ 2 thru 40 pins ]

G: Gold Flash

Blank: w/o  Bump
B1: Full Bump

B2: Half Bump

Blank: 8.5mm
1:
11mm
2 : 5.0mm
3 : 7.10mm

4 : 5.7mm

Blank: Straight Lead

K: Kink Lead

 2552M SMD

[ 2 thru 40 pins ]



G: Gold Flash

D: 30u" Selected Gold




Blank: w/o  Post

B: w Post




1: 11mm

3 : 3.55mm

4 : 3.9mm

5 : 5.0mm

7 : 7.1mm

T: T/R w Cap



Wide Pitch

2552 -

2 X

[][]

[]

- []

- []

- [][]

Series Number

2 Rows

Number of Positions
Per Row

Contact Plating

Key

Housing High

Pitch



[ 1 thru 40 pins ]

G: Gold Flash
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold

Blank: w/o  Key
B: w Key

Blank: 8.5mm

3 : 3.55mm

7 : 7.1mm

A2: 2.54x3.81mm
A3: 2.54x5.082mm
A4: 2.54x7.62mm

Elevated Type (Stack Type)

2552 -

[] X

[][]

[]

- []

[]

Series Number

2 : 2 Rows

3 : 3 Rows

Number of Positions
Per Row

Contact Plating

Housing High

Stack Number



[ 1 thru 40 pins ]

G: Gold Flash
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold

2: 8.5mm
4:
11mm

Blank: No stack

A: 1 stack 2.54mm X 1
B:
2 stack 2.54mm X 2
C:
3 stack 2.54mm X 3
D: 4 stack 2.54mm X 4

For Special Requests:
E:
 5 stack 2.54mm X 5
F:
 6 stack 2.54mm X 6
G:
7 stack 2.54mm X 7

Horizontal SMT Socket
2552S - 2 X [][] [] [] []
Series Number 2 Rows Number of Positions
Per Row
Contact Plating Housing Height Pin Length
[ 1 thru 40 pins ] G: Gold Flash
T: Tin
Blank: 8.5mm
Blank: 7.2mm
01: 6.9mm

2552 Series

2552 B Series w Key


2552M Series 3.9mm Height

2552M Series 5.08mm Height
Drawing

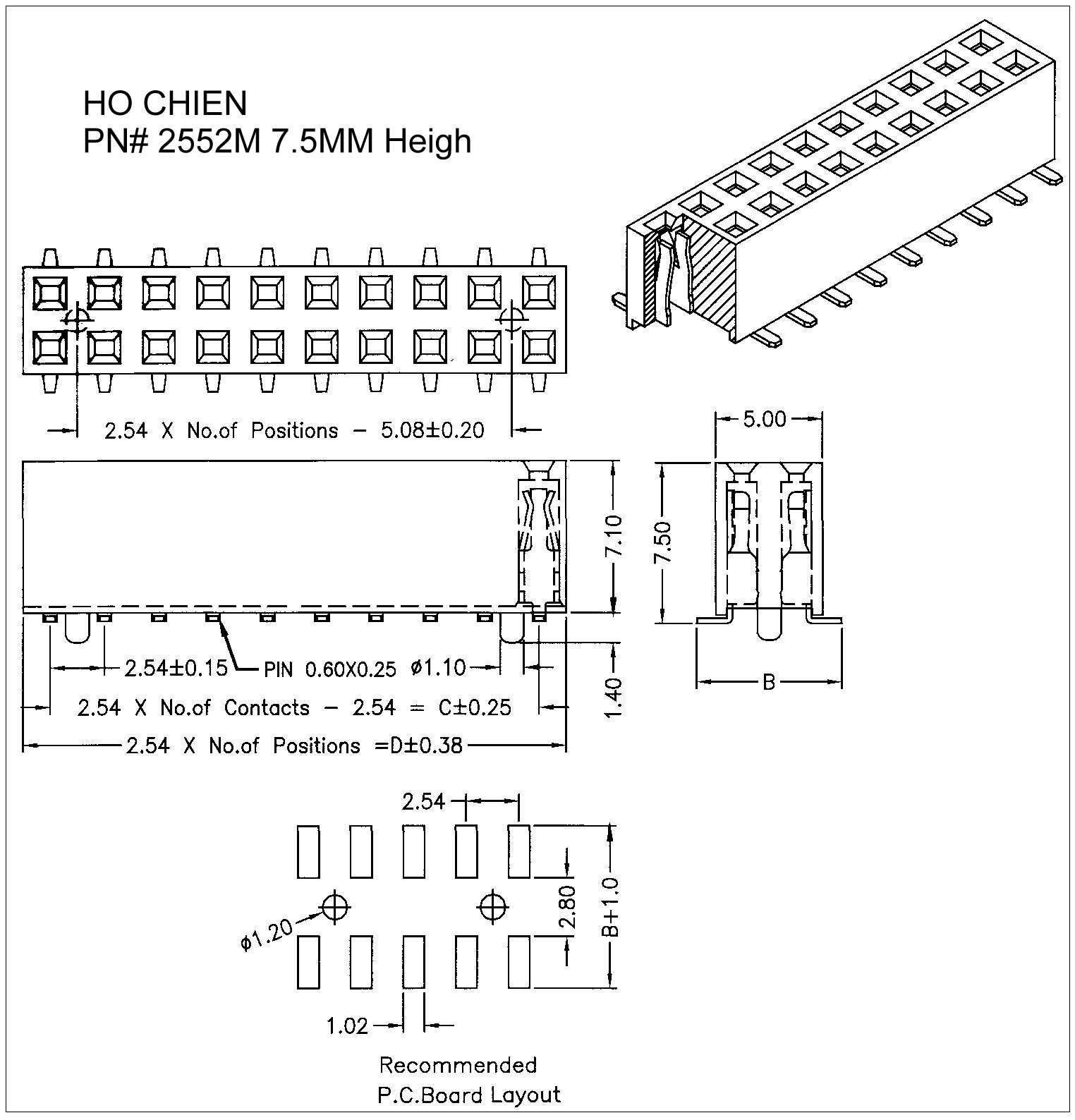

2552M Series 7.1mm Height
Drawing


 2552 Wide Pitch 7.1mm Housing

2552 Wide Pitch 3.55mm Housing

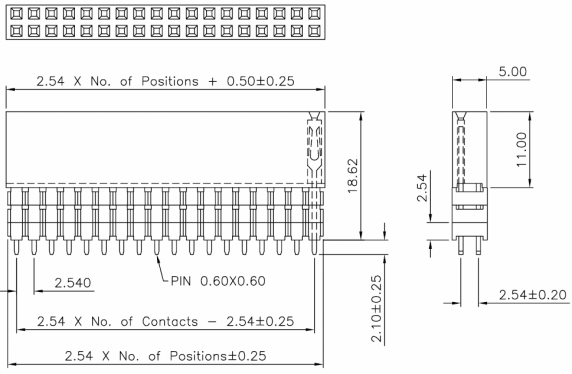

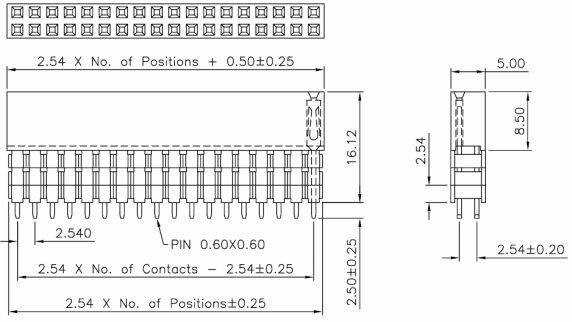

2552S Elevated Type (Stack Type)
2552S
2552S Horizontal SMT Socket
2552S
