2542M Series
0.100" x 0.100" Ctr. Un-shrouded Header; Dual Row
[ Surface Mount ]

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +140oC


Ordering Part Number

2542M-

2 x [][]

[]

[]

- []

Series Number

Number of
Positions Per Row

Contact Plating

Peg

Packaging

2542M (2.5MM)

2542M1 (1.5MM)

Plastic Height

[ 2 thru 40 pins ]

G: Gold Flash

T: Tin

GT: Selected Gold Flash
F: 10u" Gold

FT: 10u" Selected Gold
E: 15u" Gold

ET: 15u" Selected Gold
D: 30u" Gold

DT: 30u" Selected Gold

Blank: W/O Peg
P: W Peg

Blank: Tube
TC: w PAD in Tube
TR: w PAD in Tape Reel
        (Available 2X3, 2X5, 2X6, 2X7, 2X8)

2542M2-

2 x [][]

[]

- []

[]

Series Number

Number of
Positions Per Row

Contact Plating

Packaging

Post

2542M2 (1.27mm Pitch)

5, 7, 8, 10, 12
13, 15, 16, 17, 20
22, 25, 32, 40, 50

G: Gold Flash

T: Tin

T: Tube
P: Tube + Cap

R: Tape Reel + Cap

1: W/O Post
2: W/ Post

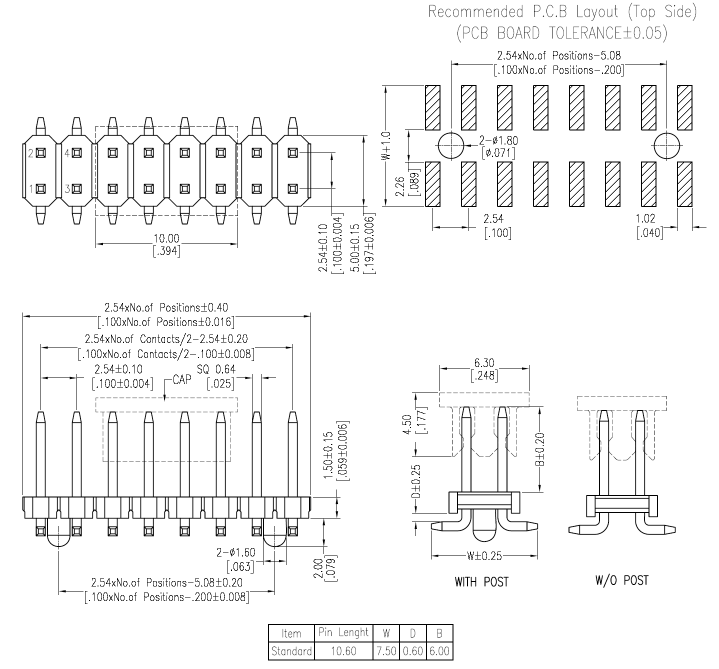

2542M: W: 7.50mm / D:0.6mm / B:6.0mm

2542M1 : W: 7.50mm / D:0.6mm / B:6.0mm

2542M2 : 1.27mm Pitch
