2507 Series
.100" Center Friction Lock Header
[ Right Angle ]

Material:
Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O White Color
Mating Connector: 2500 Series

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25oC to +85oC

RoHs
Ordering Part Number
2507 - [][] [] [] []
Series Number Number of Positions Versions Plating Package
2507:
2507B: Friction Lock
 [ 2 thru 20 pins ]
[ 2 thru 16 pins ]		 Blank: Version 1
 A: Version 2		 Blank: Tin Plating
G: Gold PlatinG MOQ		 Blank: Bag
A: Box
T: Tube

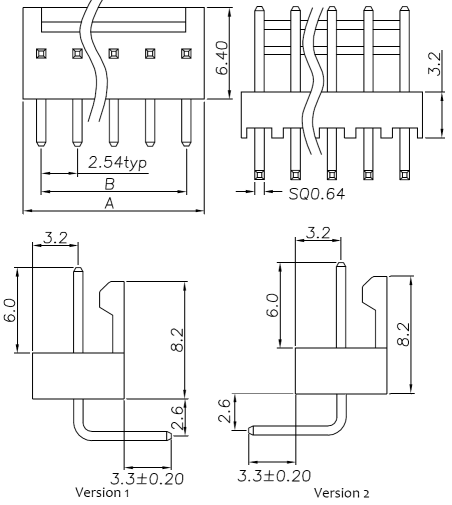

2507

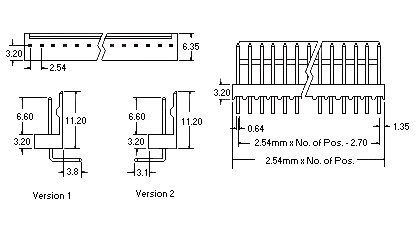

2507B
