2504, 2505 Series
 0.098"/2.5mm Center Friction Lock; Header

Material:
Contact: Phosphor Bronze
Contact Plating: Tin over Nickel Underplating
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2500 Series

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25oC to +85oC









Ordering Part Number

2504-

[][]

Series Number

Number of Positions

2504 : Straight

2505 : Right Angle (Type 1)

2505A : Right Angle (Type 2)

[ 2 thru 20 pins ]

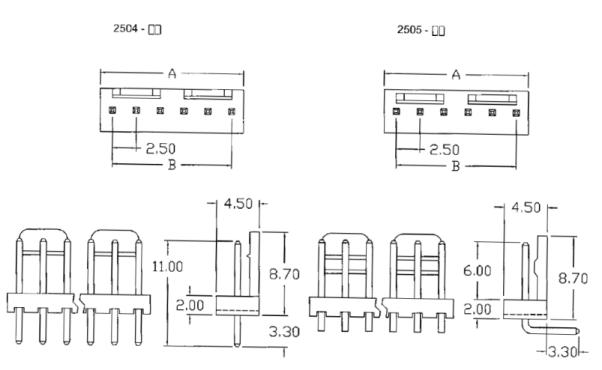

2504

2505
