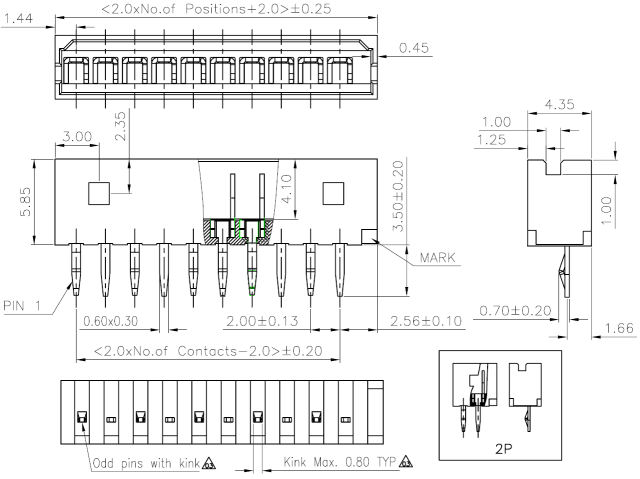

2255 Series
0.079"/2.00mm Wafrer

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over nickel Underplating
Insulator: Nylon 66; rated UL94V-O
Insulator Color: White
Mating Connectors: 2524 , 2525 Series

Electrical:
Current Rating: 2 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25
oC to +105oC



Ordering Part Number
2255 - 1 X [][] [] -[]
Series Number Number of Rows Number of Positions Contact Plating Package

1: 1 row
2: 2 row

[ 1 thru 15 pins ] T:  Tin Plating
G: Gold Flash
Blank: Tube
2255-1X
