2232 Series
0.079" / 2.00mm Center Shrouded Header

Material:
Contact: Brass
Contact Plating: Gold over Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black or Gray
Mating Connector: Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +105oC

Note: Single Row use 2524 pin header w/o Shrouded.



Ordering Part Number

2232[] -

[][]

      []

- []

Series Number

Number of Positions

Contact Plating

Color

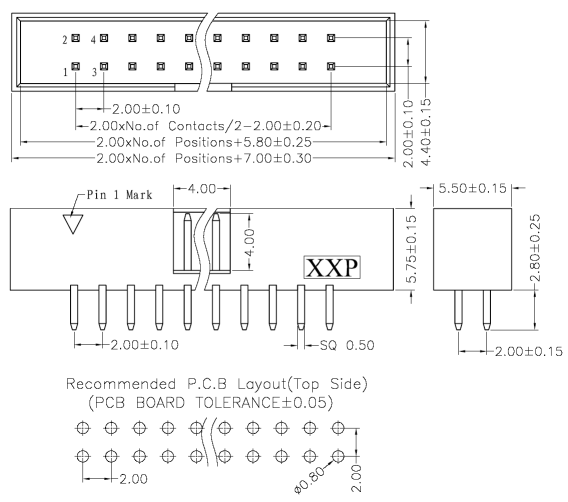

2232: Through Hole Straight

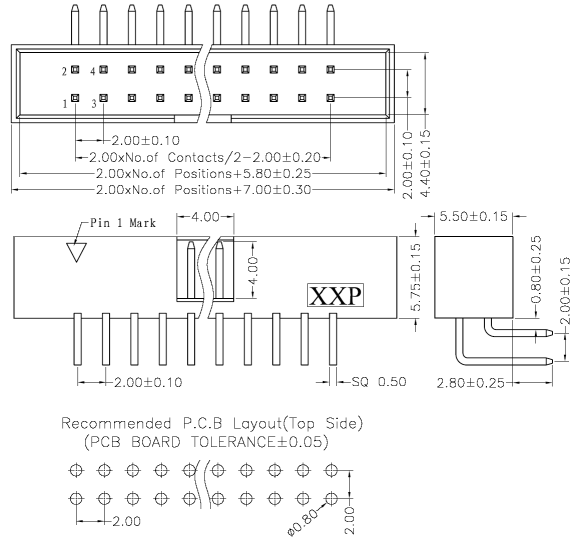

2232R: Right Angle

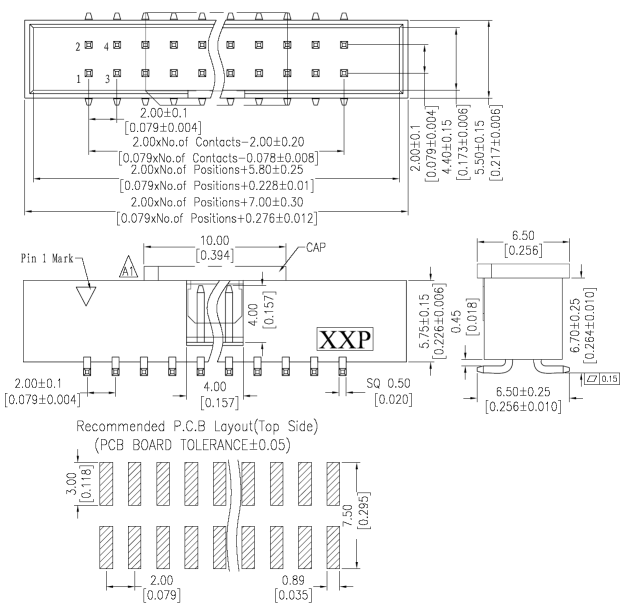

2232M: Surface Mount (Closed Type)
2232MA: Surface Mount (Open Type)
2232B: Through Hole Straight 3 Notch
(Open Type)
2232MB: Surface Mount 3 Notch
(Open Type)

10, 14, 16, 20

24, 26, 30, 34

40, 44, 50, 60

Blank: Gold Flash"
GT: Gold Flash Selected

F: 10u" Gold Plating

FT: 10u" Gold Selected
E: 15u" Gold Plating

ET: 15u" Gold Selected
D: 30u" Gold Plating

DT: 30u" Gold Selected

Blank: Tray

T: Tube

CT: Cap + Tube

CR: Cap + Tape Reel

2232

2232R

2232M



2232MA

2232B
2232MB
