2007 Series
5.00mm / 0.197", 10.0mm / 0.394" Ctr Un-shrouded Header Strip; Single Row

Material:
Contact: Brass
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: N6: PA6T High Temperature thermo plastic; rated UL94V-O

Insulator Color: Black

Electrical:
Current Rating: 15 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -40oC to +105oC

Soldering Temperature: -40oC to +105oC





RoHs

Ordering Part Number

2007 -

1 x

- [][]

[]

[]

- [][]

Series Number

Number of Rows

Number of Positions

Contact Plating




    [ 2 thru 24 pins ] T: Tin
G: Gold Flash
 		 Blanket: Straight Lead
 		 Specify A, B, C
If length is not same to standard.
 13.6: A:13.6, B:3.0, C:8.10mm

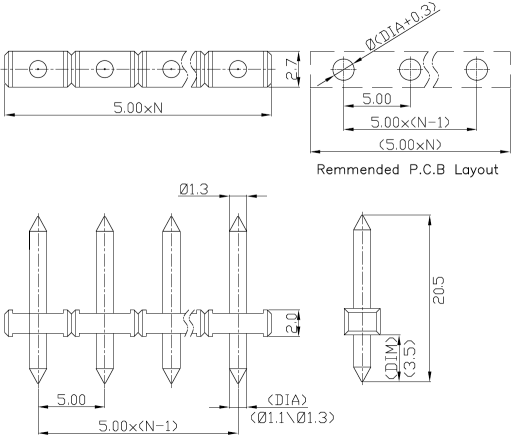

General 1 row outline.
