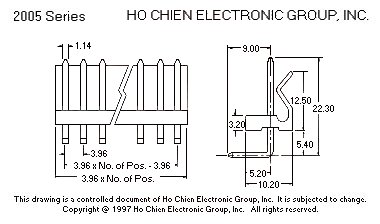

2005 Series
0.156" Center Header; Friction Lock Right Angle

Material:
Contact: Brass
Contact Plating: 120u" Tin over 100u" Nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O
Mating Connector: 2006 Series

Electrical:
Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -40oC to +105oC



Ordering Part Number
2005 - [][] -[]
Series Number Number of Positions Type

[ 1 thru 20 pins ] Type 1 = Blank
Type 2 = 1
