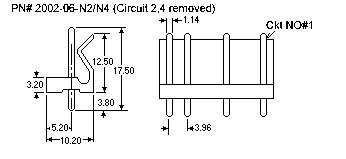

2002-N2/N4 (Circuit #2, #4 removed)
0.156" Center Header; Friction Lock

Material:
Contact: Brass
Contact Plating: 0.000150" Tin over 0.000100" Nickel Under plating
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2006 Series

Electrical:
Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -40^oC to +105^oC
